How to Read Your Meter - Smart Meter Variants

Electric Meters

  • Aclara SGM1411-B

    Press A (blue button) to cycle through the options. Cycle to import read. Keep cycling to check other readings, take them both instead of the total import.

  • EDMI ES-10A

    Press the OK button (Left hand button) to wake up the meter. You should see a screen showing Import. That is the meter reading.

  • EDMI ES-10B

    Press the right hand side OK button to cycle through the menu. Import is the reading we want. Ignore Export

  • EDMI Atlas Mk10D

    EDMI Atlas Mk10D

    Press the Select button. Keep pressing until the screen says R1 and take that readingon goes here

  • Itron EM425-UK2

    Itron EM425-UK2

    Press the orange button and take the reading which is followed by KWH. It may have IMP on the screen as well.

  • Kaifa MA120

    Kaifa MA120

    It will automatically change so you don't need to press anything. Wait for the screen that says KWH on it. Take that reading

  • Landis Gyr E470 Type 5533

    Landis Gyr E470 Type 5533

    Press A button to wake up screen. Wait until it displays the Rate 01 Act Imp. Press and hold B for 5 seconds. Press A again to cycle to rate 2 (Night rate)

  • Landis Gyr E470

    Landis Gyr E470

    Press the green button to turn it on. Click to cycle to the main reading.

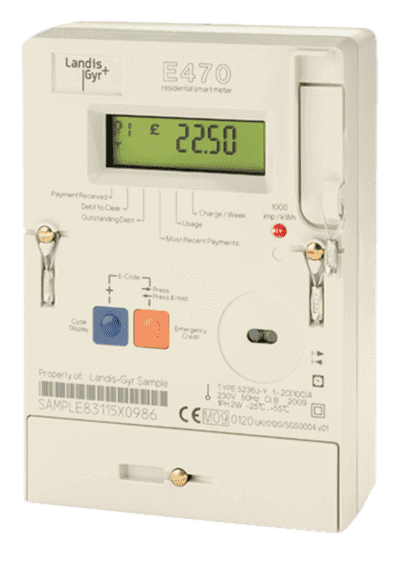

  • Landis Gyr E470 (prepay)

    Landis Gyr E470 (prepay)

    Press the orange button and take the reading which is followed by KWH

  • Secure Liberty 100

    Secure Liberty 100

    Press 9 and take the IMP KWH reading. If its an economy 7 meter press 6 and keep pressing it until you get to IMP RO1 to get your first reading and keep pressing 6 to get to RO2 for the second reading

Gas Meters

  • EDMI GS-60B

    EDMI GS-60B

    Press and hold the OK button for 1-2 seconds to wake up the meter. It will wake up on the meter reading.

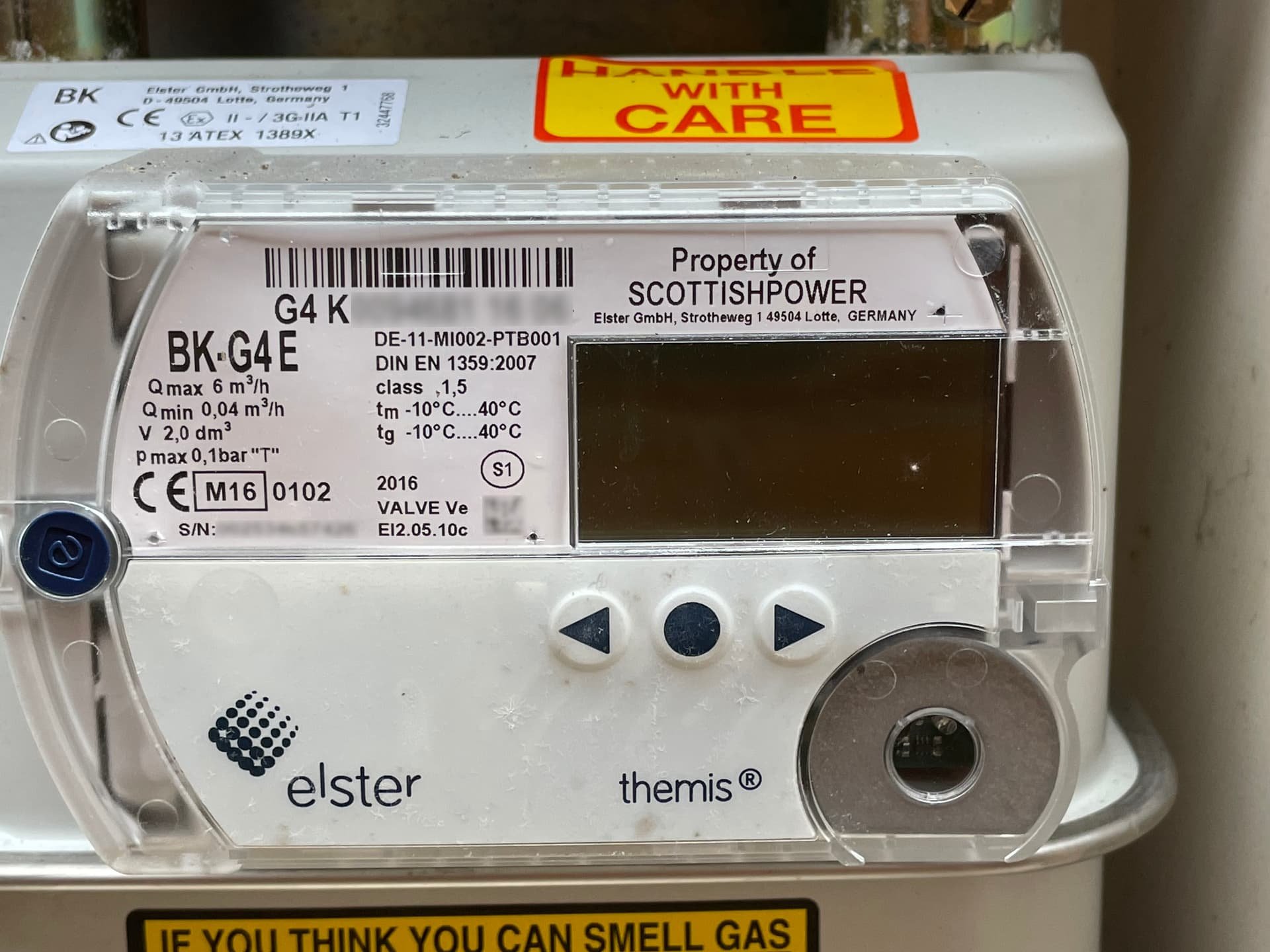

  • Elster Themis

    Elster Themis

    Press the middle button which will bring up your reading.

  • GWi G4

    GWi G4

    Press the Right hand button and note the reading

  • Landis Gyr G470 672

    Landis Gyr G470 672

    Press button A to get the meter reading.

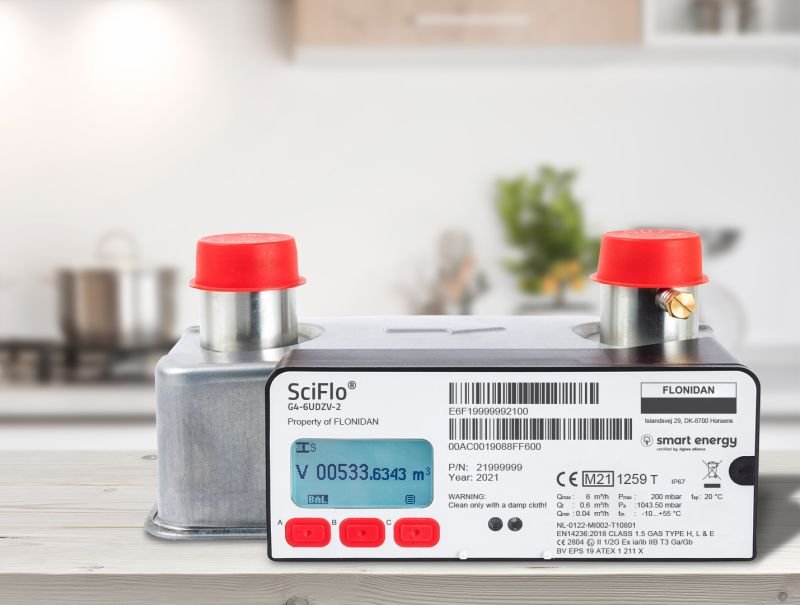

  • SciFlo G4-6UDZV-2

    SciFlo G4-6UDZV-2

    Press the middle B button to wake up the meter. It should display the reading straight away with a V to the left of the screen. Please make a note if it is m3 or ft3

  • Secure Liberty Gas

    Secure Liberty Gas

    Press 9 and take the “VOLUME” reading.

    DO NOT TAKE THE “IMP KWH” READING

  • UNIFLO G4SZV-1 or G4SZV-2

    UNIFLO G4SZV-1 or G4SZV-2

    Press the middle B button to wake up the meter. It should display the reading straight away with a V to the left of the screen. Please make a note if it is m3 or ft3
